| XYZ Strokes | 300x300x150 mm |
| Minimum Readout | 0.01 µm |
| Maximum Sample Weight | 30 kg (Accuracy Guaranteed: 10 kg) |
Maximum Permissible Error
(for samples under 20 kg) | EUX,MPE EUY,MPE: 0.6+2L /1000 µm
EUXY,MPE: 0.9+3L /1000 µm
EUZ,MPE: 0.9+L /150 µm |
| Accuracy Guaranteed Temperature | 20 °C ± 0.5 K |
| Maximum Driving Speed XY, Z | 100 mm/s , 50 mm/s |
| Minimum Driving Speed XY, Z | 0.01 mm/s , 0.001 mm/s |
| Camera | VGA 1/3“ B/W, Color, *Color camera option is available only with Type 1, 2 and 3. |

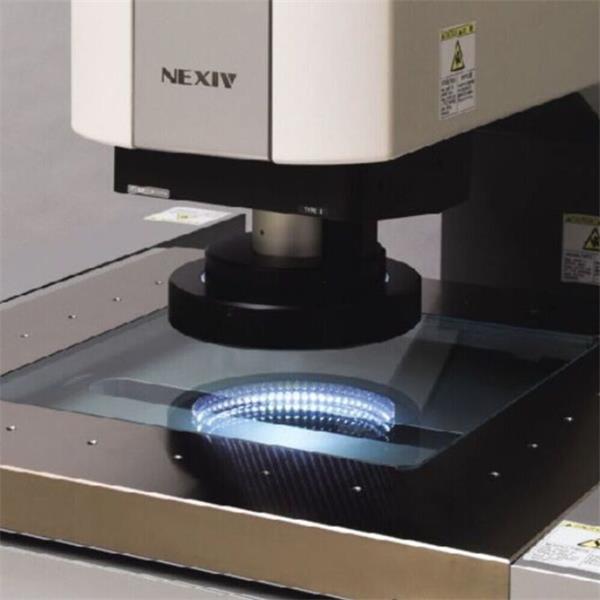

| Working Distance | Type 1, 2, 3: 50 mm (10 mm when using 75 degree LED illumination) /
Type 4: 30 mm
Type TZ: 31 mm (low magnification), 11 mm (high magnification) |

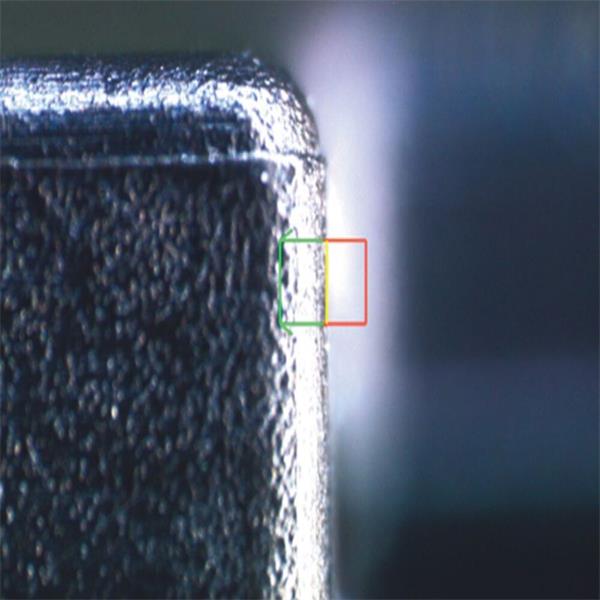

| Autofocus | Vision AF, Laser AF |
| Power Source | AC 100 - 240 V ± 10% 50/60 Hz |
| Power Consumption | 5A - 2.5 A |

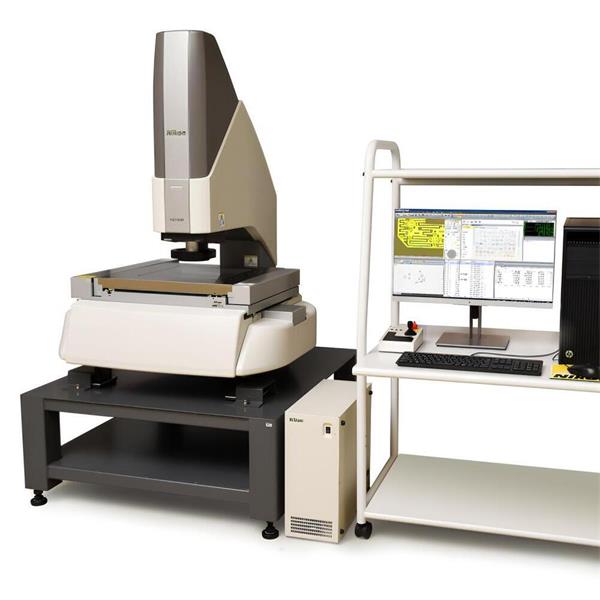

| Dimensions (WxDxH) and Weight | Main body with table: 1000 x 1125 x 1750 mm / approx. 500 kg
Controller: 190 x 450 x 440 mm / approx. 15 kg" |
| Footprint (WxD) | 3000×2800 mm |
