Nikon Metrology Inexiv Vma-2520 Video Measuring System

New
NIKON METROLOGY iNEXIV VMA-2520 Video Measuring System NIKON METROLOGY iNEXIV VMA-2520 Video Measuring System NIKON METROLOGY iNEXIV VMA-2520 Video Measuring System
Code VMA-2520

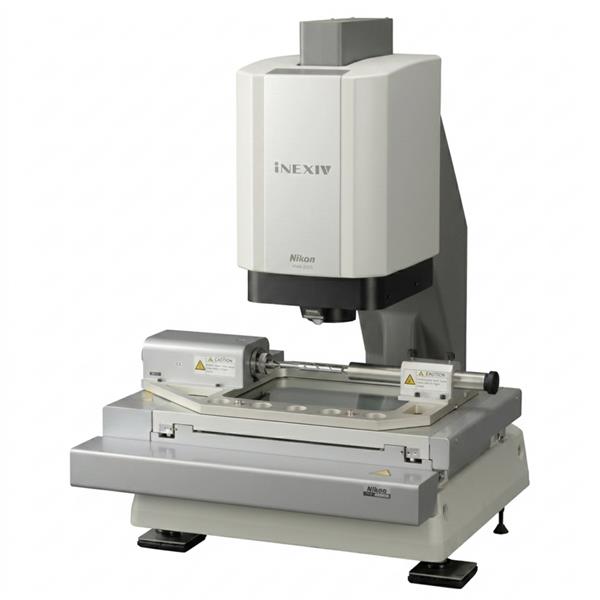

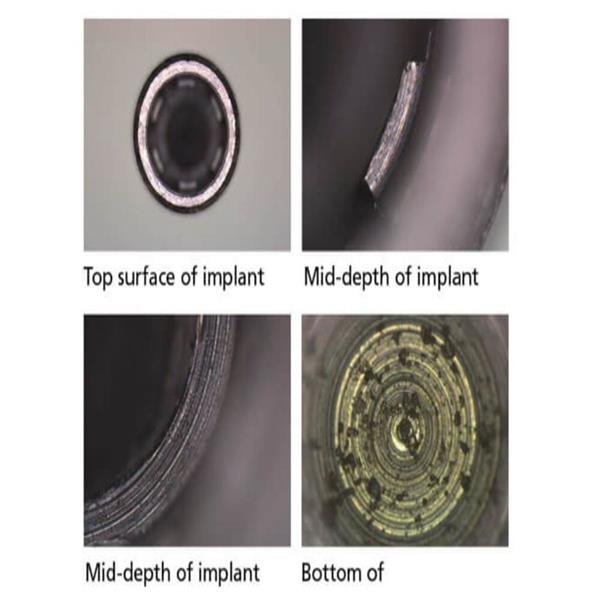

With a large field of view, a long working distance and large XYZ strokes, the iNEXIV VMA series offers the ultimate in usability for automatic measurement of 3D components.
Additional Info

NIKON METROLOGY iNEXIV VMA-2520 Video Measuring System

The iNEXIV VMA series provides three types of measurement envelope together with wide field of view optics. These touch probe-ready systems are ideal for a wide variety of industrial measurement, inspection and quality control applications using both vision and tactile measurement.

The VMA series is optimised for speed and ease-of-use as well as repeatable, accurate measurement of a variety of different components.

Downloads
Back to results page
Click to view complete product details

VMA-2520
Stroke (X x Y x Z)250 x 200 x 200 mm
Measurement Range with TP (Touch Probe)200 x 200 x 166 mm (TP20)
200 x 200 x 170 mm (TP200)
250 x 200 x 200 mm (with Vision AF)
Measurement Range with TP & MCR20 *1175 x 200 x 166 mm (TP20)
175 x 200 x 170 mm (TP200)
225 x 200 x 200 mm (with Vision AF)
Minimum Readout0.1 µm
Maximum Sample Weight (Accuracy Guaranteed)15 kg (5 kg)
Maximum Permissable Error *2
(L = Length in mm)		EUX,MPE EUY,MPE: 2+8L/1000 µm
EUXY,MPE: 3+8L/1000 µm
EUZ,MPE: 3+L/50 µm
CameraBlack & White 1/3" CCD, Color 1/3" (option)

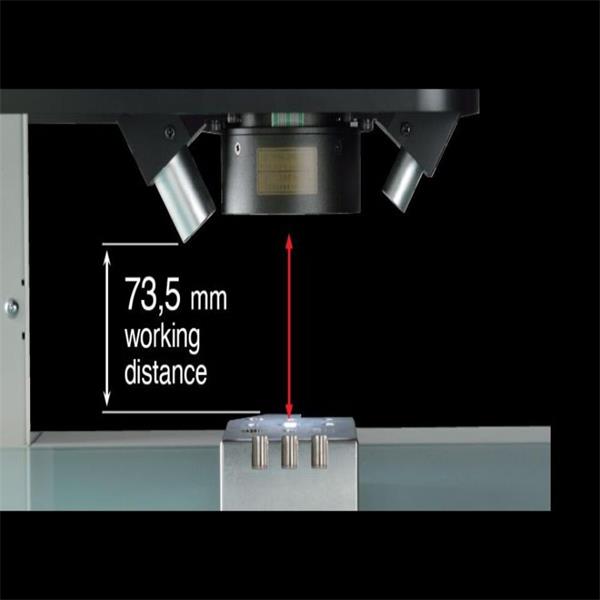

Working Distance
73.5 mm (63 mm with Laser AF)
MagnificationOptical: 0.35 to 3.5x (0.52x to 5.2x high magnification is available as an option)
On screen: 12.6 to 126x with 24-inch WUXGA (1920 x 1200 pixels) monitor
FOV size on stage13.3 x 10 mm to 1.33 x 1 mm (8.9 x 6.7 mm to 0.89 x 0.67 mm with high-magnification option)
Auto FocusVision AF, Laser AF (option)
IlluminationContour Illumination and Surface Illumination: White LED diascopic illumination
Oblique Illumination: 8-segment white LED ring
Video Resolution640 x 480 pixels
Touch Probe (optional)Renishaw® TP200/TP20
Power Source
100 V - 240 V, 50/60 Hz
Power Consumption5 A (100V) -2.5 A (240 V)
(excluding power consumption of host computer and its peripherals)
Main body (W x D x H)650 x 700 x 1557 mm 110 kg
Controller145 x 400 x 390 mm 14 kg
Operational environmentTemperature: 10 to 35ºC
Humidity: 70% or less
Accuracy guaranteed temperature20°C ±0.5K

*1: The iNEXIV-dedicated MCR20 can be used for both TP20 and TP200
*2: Nikon’s in-house test at 20°C ±0.5k
*3: With TP or Laser AF
